180° Variable Length Repair Sleeve

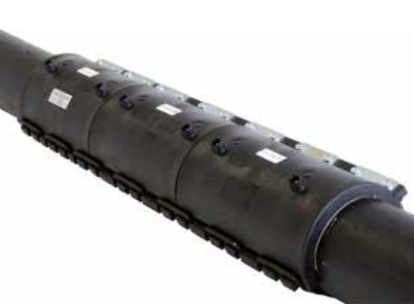

The ELOFIT INCHES 180° VARIABLE LENGTH REPAIR SLEEVE
(12EIVLRSxx180) is a modular system of electrofusion shells
that can be installed contiguously and welded on pipes that have
notches, scrapes or damage along the axis.
The standard assembly has 2 modules (12EIVLRSxx180); between
them it is possible to add the necessary number of additional middle
modules (12EIVLRSxx180M - also separately available).
Suitable to repair minor damages on pipe without fluid leakage.
The maximum network pressure allowed to weld the fitting on the
pipe depends of the polyehylene grade and SDR of the pipe.
