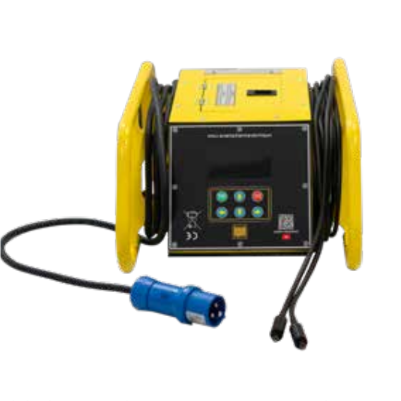

Automatic Multifunction Welding Unit With Barcode Scanner

TECHNICAL CHARACTERISTICS:
Conforms with CE requirements. Conforms with UNI 10566 – MULTIFUNCTION type
Barcode reader conforming with ISO 13950 and manual setting of time and voltage
Illuminated display with 4 lines, 20 characters each
Memory for 10.000 welding cycles
8 Memories with 500 parameters each for pressure tests
Fitting working range up to 100 Amp. maximum peak
Ambient temperature sensor
Power supply: 115V - 50Hz/60Hz
Maximum power: 2500 VA
Output voltage: from 5 to 42 V
Power cable: L= 13.1 ft
Welding cable: L= 13.1 ft
Connectors - ø4 mm (art. 00S8305) with adaptors for ø4.7 mm (00S8203)
Dimensions: 13"x 18"x H 8"
Weight: 55.44 lb
Degree of protection: IP 54
Working temperature: from 0° to + 131°F

BASIC EQUIPMENT SUPPLIED WITH THE WELDING UNIT
• User’s handbook on hardware support and quick guide on paper
• USB key (2GB) to download data (welding report and pressure test)
• Shipping box
• Scanner for barcode input
• Adapters with ø4,7 mm pins
ADDITIONAL EQUIPMENT
• 00GPS: Global Positioning System
• 00SENS: Pressure test unit
