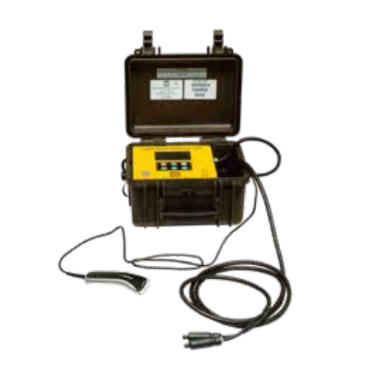

Automatic Multifunction Welding Unit With Barcode Scanner Super Light Version
-
Fast delivery on all orders!
TECHNICAL CHARACTERISTICS:
Conforms with CE requirements. Conforms with UNI 10566 – MULTIFUNCTION type
Barcode reader conforming with ISO 13950 and manual setting of time and voltage
Illuminated display with 4 lines, 20 characters each
Fitting working range up to 20 Amp. maximum peak
Ambient temperature sensor
Power supply: 115V - 50Hz/60Hz
Maximum power: 500 VA
Output voltage: from 5 to 42 V
Power cable: L= 13.1 ft
Welding cable: L= 13.1 ft
Connectors - ø4 mm (art. 00S8305) with adaptors for ø4.7 mm (00S8203)
Dimensions: 8.2"x 4.5"x H 7"
Weight: 16 lb
Degree of protection: IP 54
Working temperature: from 0° to + 131°F
BASIC EQUIPMENT SUPPLIED WITH THE WELDING UNIT
• User’s handbook on hardware support and quick guide on paper
• Barcoe scanner
• Adapters with ø4,7 mm pins
ADDITIONAL EQUIPMENT
• 00BCSCAN: Barcode scanner
