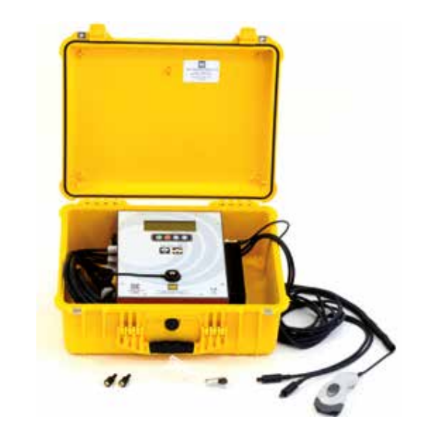

Multifunction - Smart - Welding Unit Incorporated In Pelican Case

The new welding unit as the SMARTWELD associated with the APP 'Nupi
Welding Cloud' allows a 360° management of all information related
to the construction site, the weld itself, the traceability of the products
installed, the mapping using GPS tracking as well all testing activities later.
Incorporated in the most innovative waterproof case (PELI). The case is watertight,
waterproof, sand-proof, dust proof and able to with stand harsh environments
and shocks. It is certified to withstand termperature rating from -28 to +194 °F
and is in fact the ideal mean of trasportation for sensitive devices.

BASIC EQUIPMENT SUPPLIED WITH THE WELDING UNIT:
• User’s handbook on hardware support and quick guide on paper
• USB key (2GB) to download data (welding report and pressure test)
• Shipping box integrated
• Barcode scanner
• Adapters with ø4,7 mm pins
ADDITIONAL EQUIPMENT AND SPARES:
• 00SENS: Pressure test unit

TECHNICAL CHARACTERISTICS:
Conforms with CE requirements. Conforms with UNI 10566 – MULTIFUNCTION type
Barcode reader conforming with ISO 13950 and manual setting of time and voltage
Illuminated display with 4 lines, 20 characters each
Memory for 10.000 welding cycles
8 Memories with 500 parameters each for pressure tests
Fitting working range up to 70 Amp. maximum peak
Ambient temperature sensor
Power supply: 115V - 50Hz/60Hz
Maximum power: 2000 VA
Minimum power suplly: 4 Kw
Output voltage: from 5 to 42 V
Power cable: L= 13.1 ft
Welding cable: L= 13.1 ft
Connectors - ø4 mm (art. 00S8305) with adaptors for ø4.7 mm (00S8203)
Dimensions: 23.78"x 18.33"x H 12.08"
Weight: 44 lb
Degree of protection: IP 54
Working temperature: from 0° to + 131°F
