Pipe Drilling Machine For Networks Under Pressure

The drilling machine for high volume branch saddles has special sealed
chambers to easily drill both pipes conveying gas or water under pressure and
sewage pipes.
Thanks to interchangeable cutters (code 00FFxxx) and adapters (code 00FAxxx) it is possible to drill main pipelines from 3" to 40" with service lines from 2" to 6".

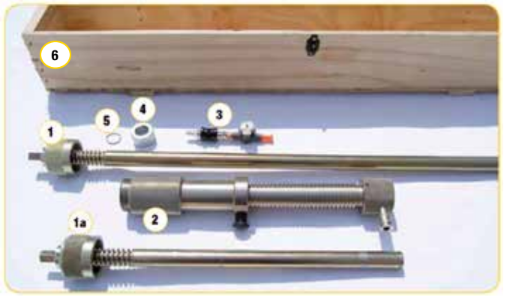

The basic machine is composed of:
1. Long shaft to drill under pressure and non-pressured lines
1a. Short shaft for non-pressured drilling
2. Body with threaded shaft, vent valve and safety lock
3. Pressure gauge with valve for pressure measuring and depressurizing
4. Ring nut for cutter holding
5. Seeger ring
Ratchet wrench, milling cutters and adapter are available separately.
